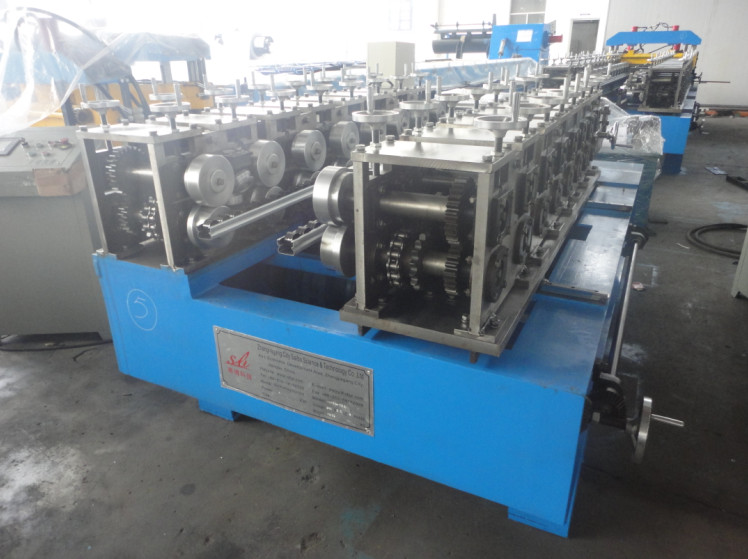

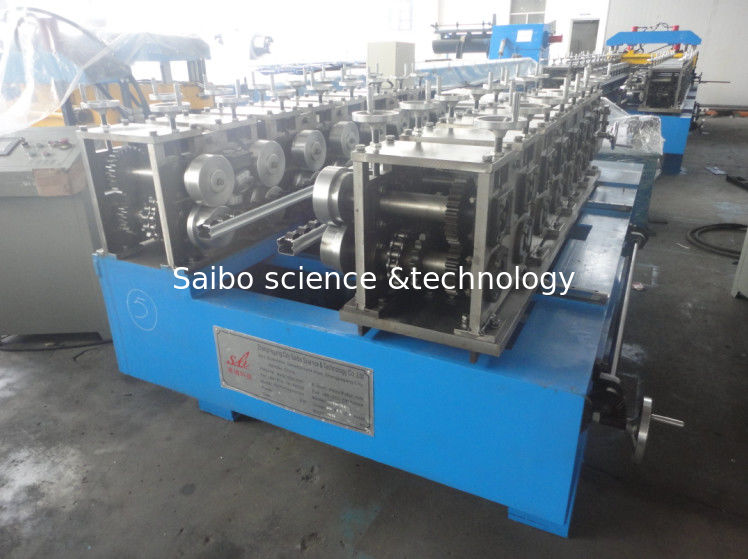

Standing Seam Roof Panel Roll Forming Machine Container Fix Type PPGI PPGL 320-400 Mpa

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: 18 and 24 inch
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T or L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Standing Seam Roll Forming Machine Main Power: 7.5KW Siemens
Hydraulic Power: 4KW Siemens Steel Thickness: 0.45-0.75mm
Coil Width: 600/760mm Station: About 15 Stations( According The Final Design)
Roller Material: ASTM1045 Chrome Plated Surface With Chrome Drive System: By Chain
Diameter Of Shaft: ¢65mm Solid Shaft
High Light:

Wall Panel Roll Forming Machine


Roof Sheet Roll Forming Machine

Product Description

Corrugated Roll Forming Machine


1. Specification of the material

1 Suitable Material PPGI,PPGL Yield strength 320-400Mpa
2 Width of the raw material 600/760mm
3 Thickness 0.45/0.75mm


2. Machine Detailed Parameters


Roll Forming Machine


Standing Seam Roll Forming Machine

Machine structure


Wire-electrode cutting frame
3 Total power

Motor power-7.5kw Siemens

Hydraulic power-4kw Siemens


Roller stations


About 15 stations




Drive system


By chain

Diameter of shaft


¢65mm solid shaft



380V 50Hz 3phases (Customized)

Color Of The Machine


Bule and yellow

Deliver time


70 days

Terms Of Payment


30%T/T 70% pay before shipment


3. Profile drawing

Standing Seam Roof Panel Roll Forming Machine Container Fix Type PPGI PPGL 320-400 Mpa 0

4. The Chart of Process Flow


Manual Decoiler—Roll Forming—Cutting—Out table

Standing Seam Roof Panel Roll Forming Machine Container Fix Type PPGI PPGL 320-400 Mpa 1



5. Specification of Components


(1) Un-coiler

  • Width of feeding: 760mm
  • Capability: 3.5Ton
  • Inter diameter: 500-590mm
  • Maximal out diameter: 1500mm
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
(2) Hydraulic pre cutting system
  • Cutting before forming: Cut the sheet before roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


(3) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢65mm material: SAE1045 with quenching and tempering
  • Machine one side is fixed, one side is adjustable by hand wheel
  • For profile, rib is adjustable by spacer


(4) Hydraulic station

  • Hydraulic power: 4kw
  • Working pressure: 12Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil


(5) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization


6. Installation and training:


a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.


b.Without visiting, we will send you user manual and video to teach you to install and operate.


C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
