1300mm Feeding Width Stainless Steel plate leveling machine 15-25M/min Output Speed

Brand Name:	HENGFU
MOQ:	1 Piece
Payment Terms:	30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Feeding Width:

1300mm

Applicable Material:

Stainless Steel

Effective Forming Width:

1250mm

Processable Thickness:

1-2mm (Common: 2mm)

Length Error:

Plate Output Speed:

15-25M/min

Transmission Mode:

Gear Drive

Rolling Shaft Material:

Production Line Process:

Uncoiling → Guided Feeding → Roll Forming → Fixed-length Cutting → Finished Plate Output

Packaging Details:

Plastic Film & Steel Wire Fixed

Highlight:

stainless steel plate leveling machine

1300mm plate leveling machine

1300mm steel leveling machine

Product Description

High Precision 1.3M Stainless Steel Leveling Machine Automatic Sheet Metal Flattener

Dongguang Hengfu Roll Forming Machine Co., Ltd. has engineered the 1.3m Stainless Steel Leveling Machine with sophisticated manufacturing standards, providing a professional solution for high-precision stainless steel plate leveling and forming applications. Designed specifically for stainless steel materials, this machine integrates a complete production line workflow from uncoiling to finished plate output, ensuring seamless and efficient operation for metal processing enterprises of all scales.

Backed by extensive experience in roll forming equipment R&D and production, the machine delivers reliable performance, stable forming effects, and long-term durability, making it a trusted choice for stainless steel processing projects.

Robust Structural Design

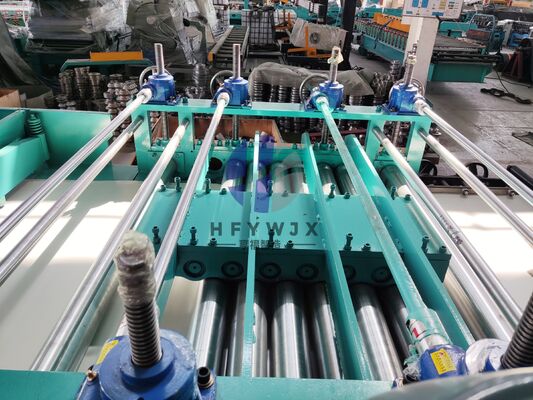

Engineered with a robust structural framework, the machine features a 100×100×6mm square tube main frame and 40mm thick wall plates, providing an ultra-stable foundation that eliminates vibration and deformation during high-speed operation. The forming system adopts an upper 7 and lower 6 pass design with integrated upper and lower pressing, paired with 90mm solid spindles and 45Cr rollers treated with quenching, tempering, chrome plating and precision grinding.

These high-quality components ensure uniform stress on stainless steel plates, smooth leveling without warpage, and excellent resistance to wear and corrosion for prolonged service life. The 7.5KW high-performance Shanghai motor and gear drive system guarantee powerful and consistent power output, enabling a high plate output speed of 15-25M/min to significantly boost production efficiency.

Intelligent Control System

The machine is equipped with an intelligent and user-friendly control and shearing system that redefines precision and convenience in stainless steel processing. Its PLC split touch screen and rotary counter with linear slider bracket enable intuitive parameter setting and accurate fixed-length control, achieving a minimal length error of ±1mm to meet strict industrial precision requirements.

The electric shearing system, made with Cr12 quenched and tempered knife plates, realizes burr-free cutting of stainless steel plates. The equipped remote controller allows flexible operation, reducing manual operation intensity and improving processing safety. All low-voltage electrical components including limit switches and contactors are selected for high quality, ensuring system stability and minimal maintenance requirements.

Material Specifications & Performance

Optimized for professional stainless steel processing, this leveling machine boasts excellent material adaptability, dedicated to processing stainless steel plates with a feeding width of 1300mm, effective forming width of 1250mm and processable thickness of 1-2mm (2mm as the common processing thickness). The double hand-crank feeding rack on the feeding platform ensures smooth and stable material feeding, avoiding material deviation and ensuring consistent forming quality.

Every detail from the grade 8.8 screws and 35m tie rods to the rational layout of the whole machine reflects Dongguang Hengfu's pursuit of perfection and rigorous quality control, making the machine suitable for mass production of various stainless steel plate products and adaptable to different production environments.

Technical Specifications

Core Parameter	Specification
Applicable Material	Stainless steel
Feeding Width	1300mm
Effective Forming Width	1250mm
Processable Thickness	1-2mm (Common: 2mm)
Main Motor Power	7.5KW (Shanghai Motor)
Plate Output Speed	15-25M/min
Length Error	±1mm
Cutting Mode	Electric shearing (burr-free, remote control)
Control System	PLC split touch screen
External Voltage	Three-phase 380V 50HZ
Transmission Mode	Gear drive
Key Material	45Cr quenched/tempered/chrome-plated rollers
Production Line Process	Uncoiling→Feeding→Roll Forming→Cutting→Output

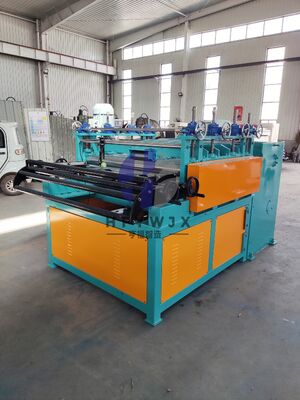

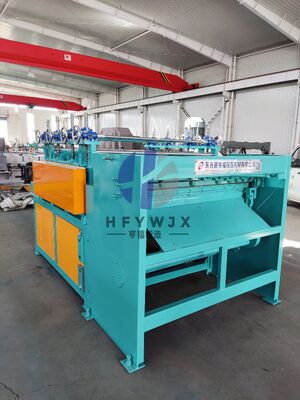

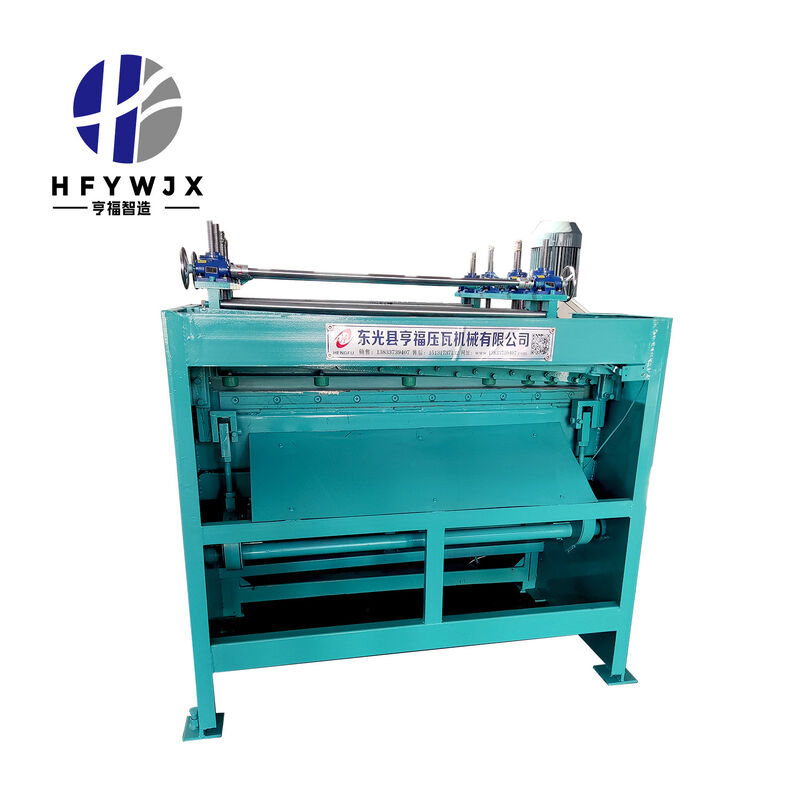

Product Images

Frequently Asked Questions

How can issues such as skewed or off-center sheet feeding be resolved?

The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.

Is there a leveling device at the material inlet?

It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.

Can the machine produce stainless steel sheets? What are the requirements for the equipment?

Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.

Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?

Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.

How long is the warranty period?

The entire machine comes with a 12-month warranty, excluding wear parts.
