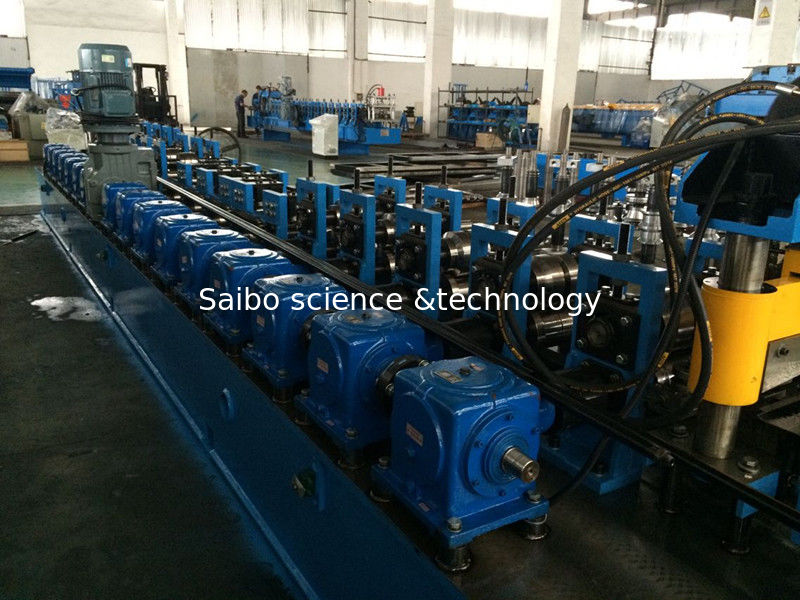

Chain Drive Ceiling roll forming machine with Gcr15 Rollers Cassette Type

Basic Information
Place of Origin: China
Brand Name: Saibo
Certification: CE/ISO
Model Number: Cassette type
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for ocean shipment
Delivery Time: 70 working days after received deposit
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detail Information
Product Name: Ceiling Roll Forming Machine Main Power: 11KW
Hydraulic Power: 4kw Station: 17 Stations
Drive: By Gear Box Cutter: 6 Sets
Material: Q235
High Light:

Pipe Roll Forming Machine


Stud Roll Forming Machine

Product Description

15m/min Steel Stud Roll Forming Machine with Gcr15 Rollers Cassette Type


1. Machine Detailed Parameters

1 Roll Forming


Ceiling roll forming machine
2 Machine structure


Wire- electrode cutting structure
3 Total power

Motor power-11kw

Hydraulic power-4kw
4 Roller stations

About 17 station+ one station of rectify






Drive system


By gear box

Diameter of shaft


¢65mm solid shaft


3. Profile drawing

Chain Drive Ceiling roll forming machine with Gcr15 Rollers Cassette Type 0


4. The Chart of Process Flow

Chain Drive Ceiling roll forming machine with Gcr15 Rollers Cassette Type 1



5. Specification of Components


(1) Main Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢56mm material: SAE1045 with quenching and tempering


(2) Machine Structure

  • Main frame by steel plate welding
  • Machine structure: wire-electrode cutting


(3) Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Uses two hydraulic cylinders for operation.
  • Material of blade:Cr12, 58-62 HRC hardness , 6 sets
  • Cutting power by hydraulic,4KW
  • Working pressure: 12Mpa adjustable
  • Length measuring: Automatic encoder length measuring
  • Tolerance of length: +/- 1.5mm for each piece end product


6. Installation and training

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.


7. FQA

Q: Can you make the machine according to my design or proto type?

A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us


Q: How do you guarantee the quality of the products?

A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory

Every one of our products have strict testing procedures, must be 100% quality assurance.


Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.Good aftersales-service, its free of charge during the warranty period.
