Fully Automatic T Profile Roll Forming Machine Hydraulic Shearing For Construction

Brand Name: HENGFU
MOQ: 1 Piece
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Tile Type:
Colored Steel
Certification:
CE, SGS
Condition:
New
Customized:
Customized
Usage:
Roof
Transmission Method:
Electric
Feed Width:
119±5mm
Control System:
PLC
Hydraulic Pump:
4kw
Transport Package:
Plastic Film & Steel Wire Fixed
Specification:
5100mm*900mm*2000mm
Package Size:
510.00cm * 90.00cm * 200.00cm
Package Gross Weight:
2500.000kg
Packaging Details:
Plastic Film & Steel Wire Fixed
Highlight:

t profile roll forming machine

,

t profile forming machine

,

fully automatic profile forming machine

Product Description
Fully Automatic T-shaped Cold Bending Forming Equipment
The T-Profile Roll Forming Machine is a high-efficiency device specifically designed for producing T-shaped metal profiles. It is widely applied in the construction industry, serving functions such as ceiling suspension systems, partition frame supports, door frame structures, and curtain wall reinforcement components.
By adopting continuous cold roll forming technology, the machine ensures that the manufactured profiles achieve precise dimensions and flawless surface finishes. This allows for direct installation in various construction scenarios without the need for additional processing.
The machine is equipped with hardened roller forming stations to ensure durability during continuous production. Combined with PLC automatic control and hydraulic/servo cutting systems, it operates stably and achieves high production efficiency, reducing labor costs significantly.
It is highly versatile, supporting multiple materials like galvanized steel, carbon steel, stainless steel, and aluminum. The machine also offers customizable profile specifications based on customer drawings, making it an ideal choice for diverse construction material manufacturers.
Technical Specifications
Roll Forming Section
Frame structure Precision milling of square boxes
Number of molding passes 16 rows
Wall panel thickness 20mm
Feed rack Two-hand crank feed belt with knife pull
Electrical control system configuration Split touchscreen electrical control box with remote control
Screws/Pull Rods Standard screws, 35 pull rods
Roller speed 0.5m/min, 4m/min
Forming rollers 45# steel, rough machining + finish turning + external cylindrical grinding + electroplating, hardness 45-50 HRC
Shearing device 5.5kW servo electric shear
Hydraulic pump power 4KW
Punching Section
Rack Freestanding rack
Feeding device Servo feeding
Feeding motor power 1.5 kW servo motor
Product Gallery

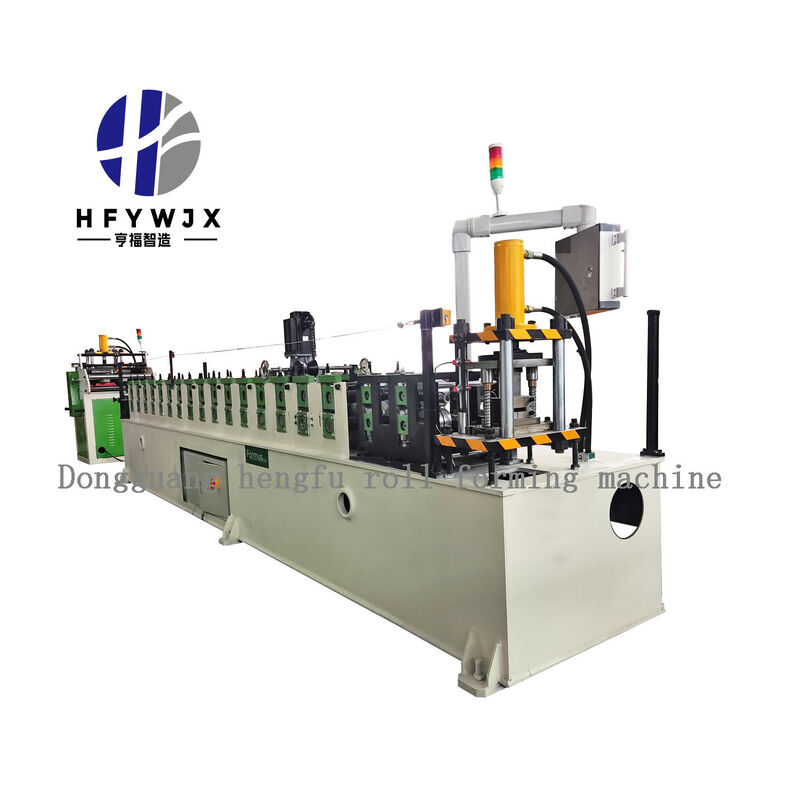

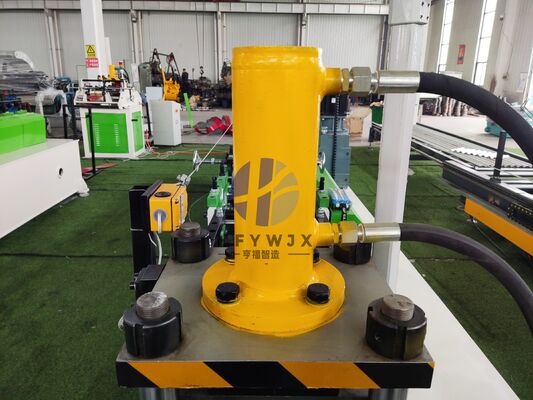

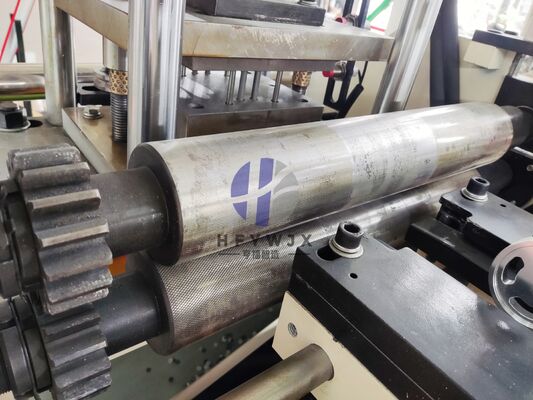

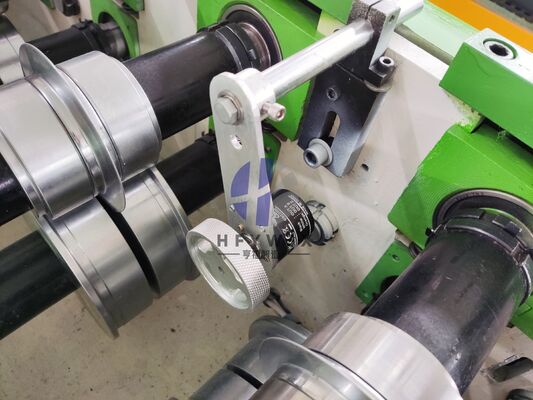

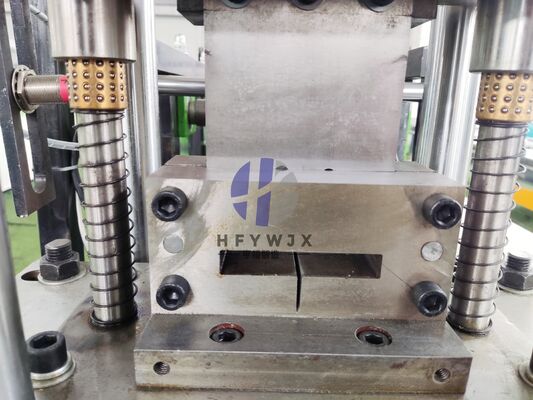

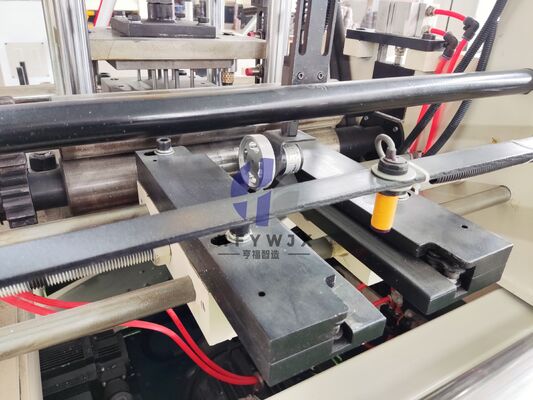

Fully Automatic T Profile Roll Forming Machine Hydraulic Shearing For Construction 0 Fully Automatic T Profile Roll Forming Machine Hydraulic Shearing For Construction 1 Fully Automatic T Profile Roll Forming Machine Hydraulic Shearing For Construction 2 Fully Automatic T Profile Roll Forming Machine Hydraulic Shearing For Construction 3 Fully Automatic T Profile Roll Forming Machine Hydraulic Shearing For Construction 4
Frequently Asked Questions
Will the machine's precision be compromised during transport?
Thanks to its fully welded structure and reinforced packaging, transportation will not affect the precision of the rollers or the machine frame.
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Fully Automatic T Profile Roll Forming Machine Hydraulic Shearing For Construction 5
